My own little MeshCore repeater
Location:
- Schlehenweg 15, Wyk auf Föhr, Germany
- 54.69276, 8.54798
 |
 |
 |
Technical Data:
- Hardware: Heltec V4

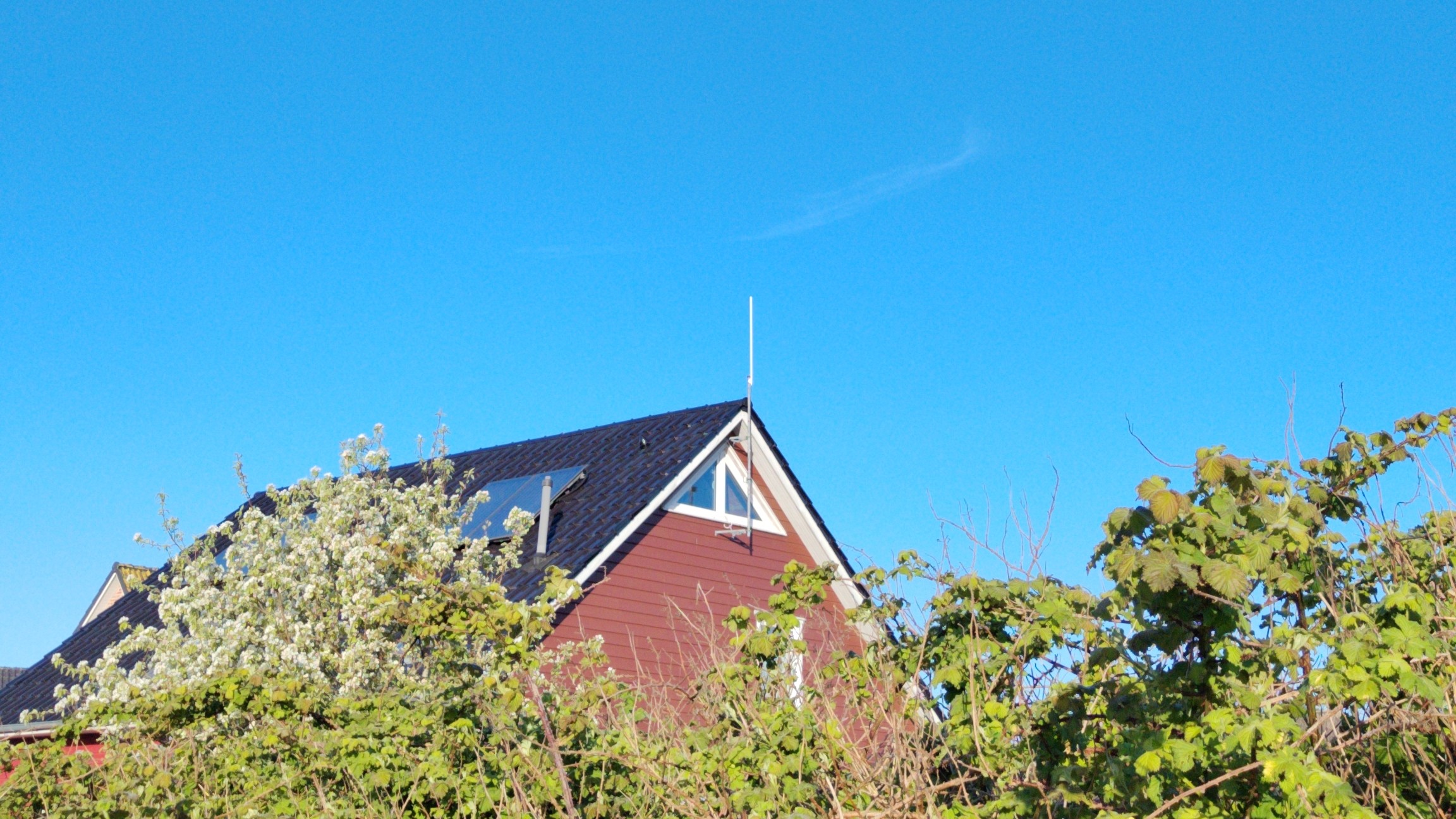

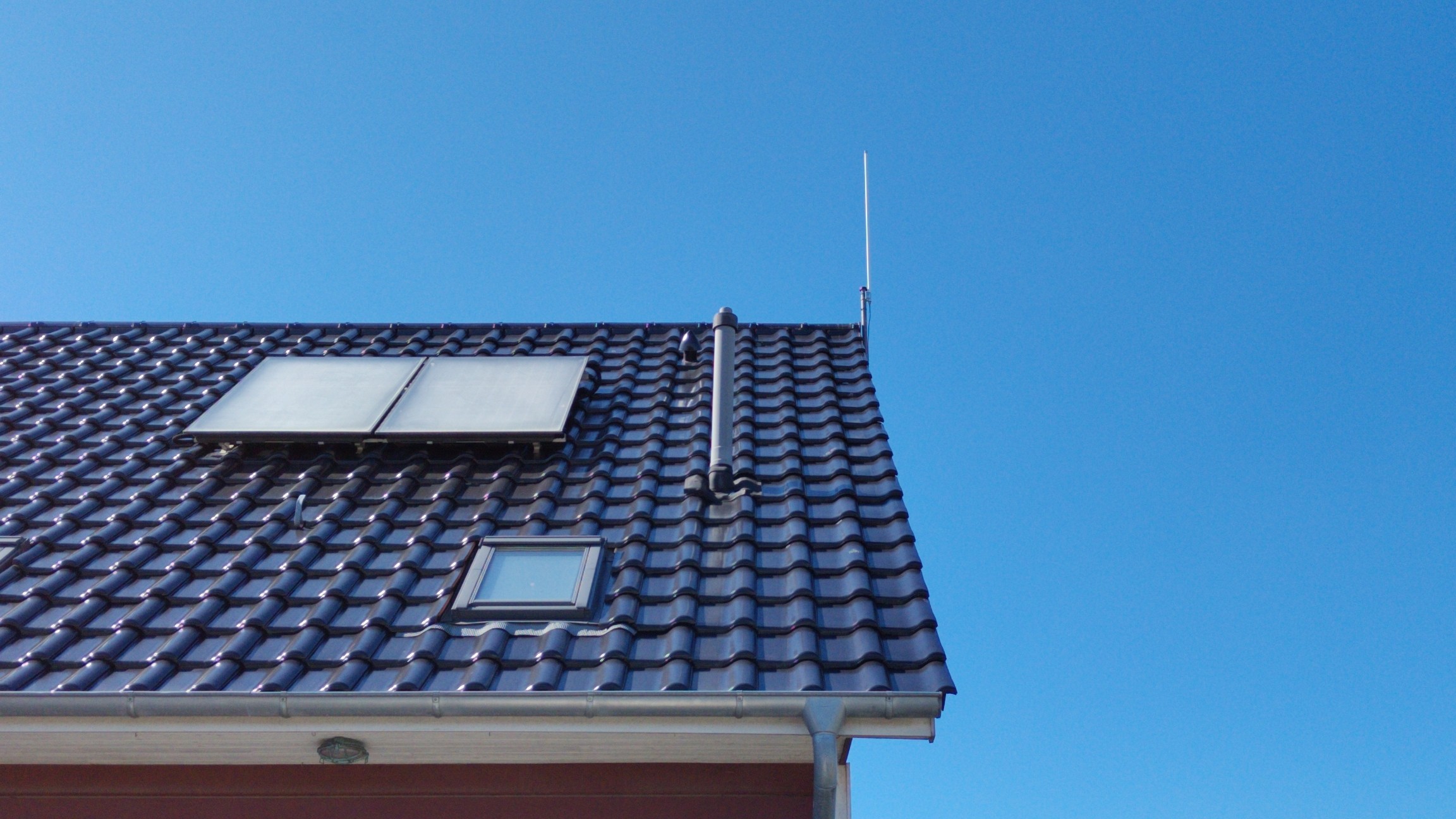

- Antenna: Fei Teng OA-868M09-NF, 9 dBi, mounted 8.5m above ground
- Filter: TA2532A SAW Filter
- Powered by: 2x20W solar panels, Victron MPPT 75|10, 3P7S Li-Ion recycled golf cart battery
- On Air since: April 25, 2026 (first experiments in February 2026 with stock antenna)
2026-05-12
- First successful OTA update from 1.13 to 1.15 accomplished!
- No default region scope set, but now on 2-byte Path Hash Size.
Photographic Evidence:

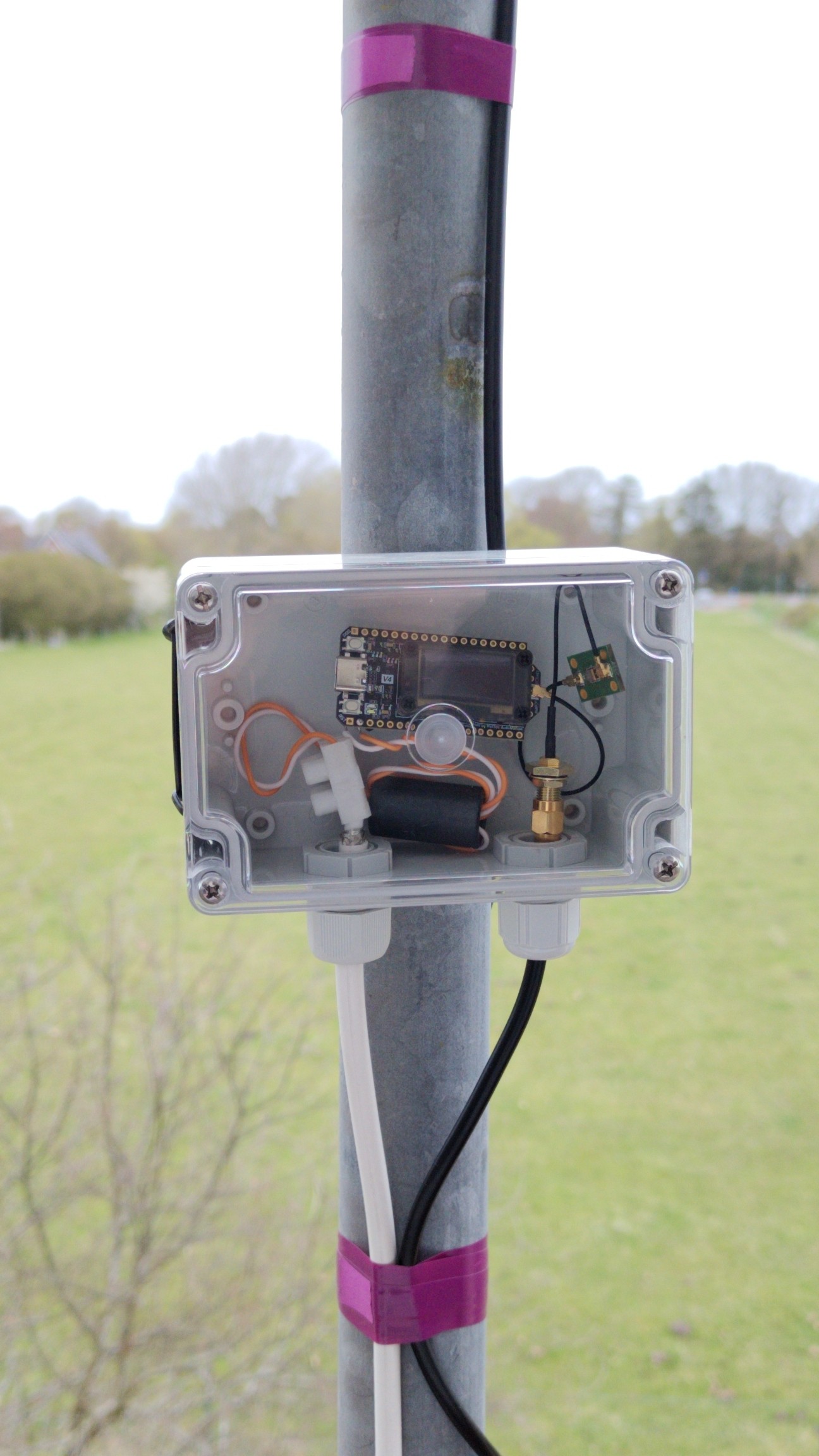

V4 and filter mounted outside in a waterproof Bopla Euromas case attached to the mast. Power is supplied via coax and a ribbon cable through the window.
Get in touch!
Wanna know some more about my setup, or share some info about yours? Received me over the air from The Netherlands or Denmark? Just hit me up on Mastodon or send me an E-Mail - unless you can reach me directly via MeshCore, of course 8)!
